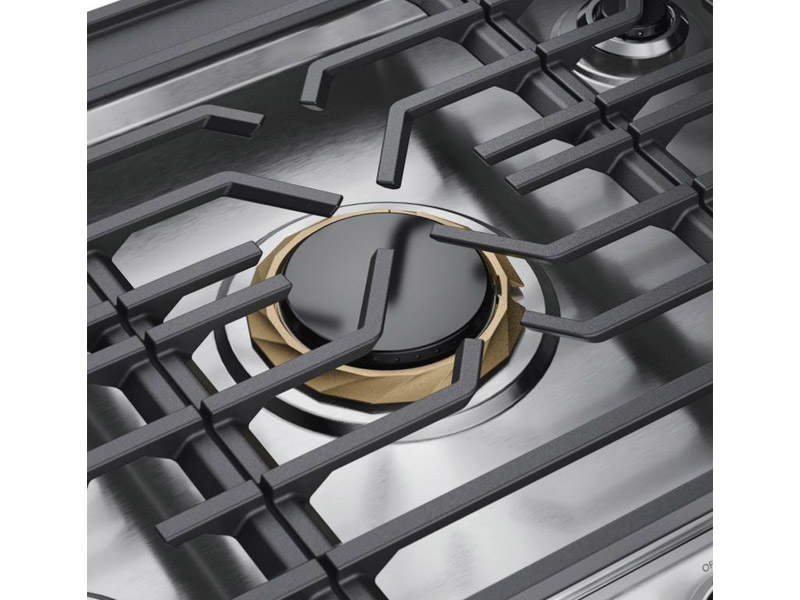

Even Temp™ Burner
When using the Even Temp™ burner, heat is more evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

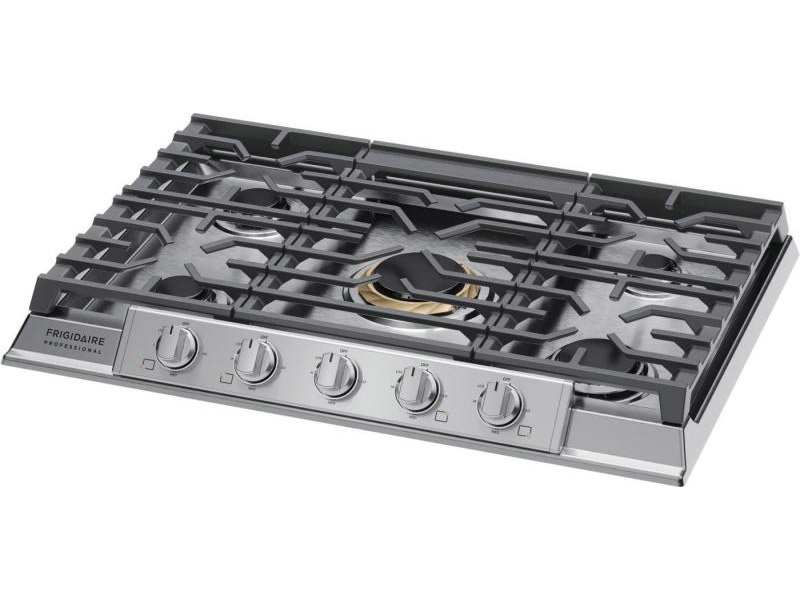

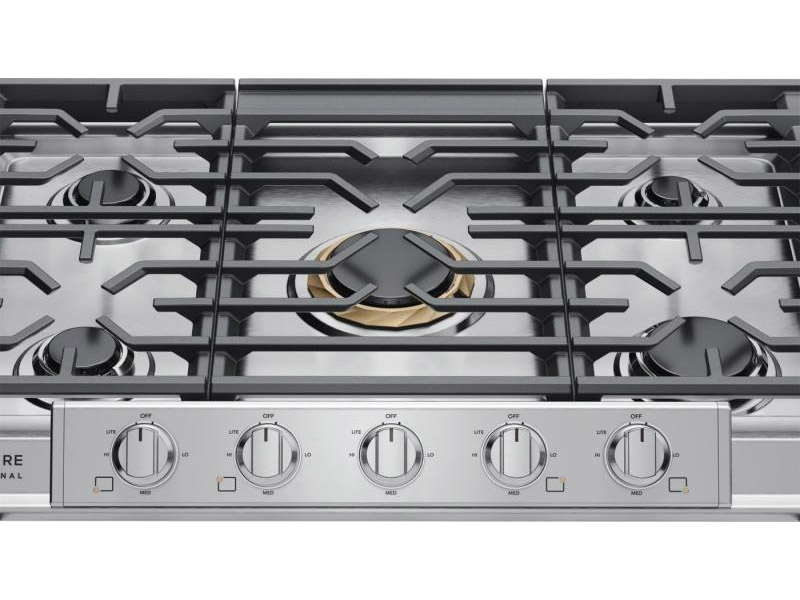

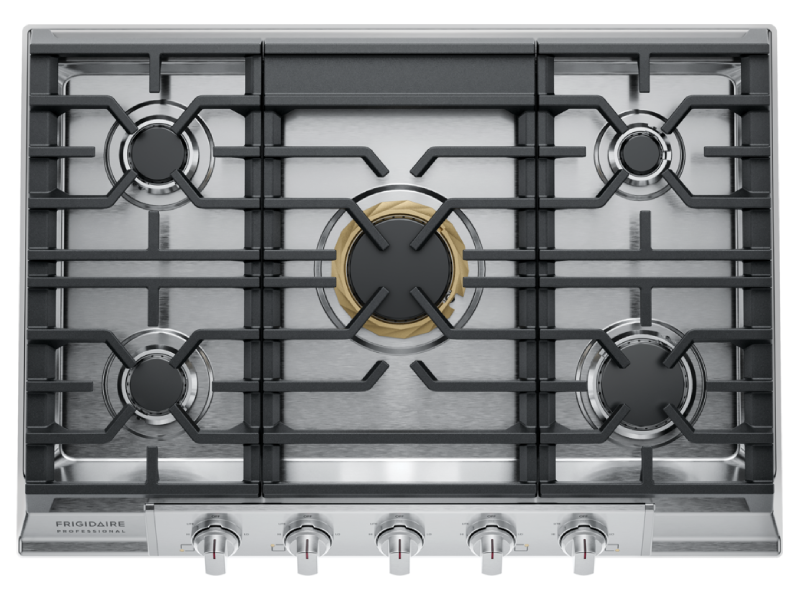

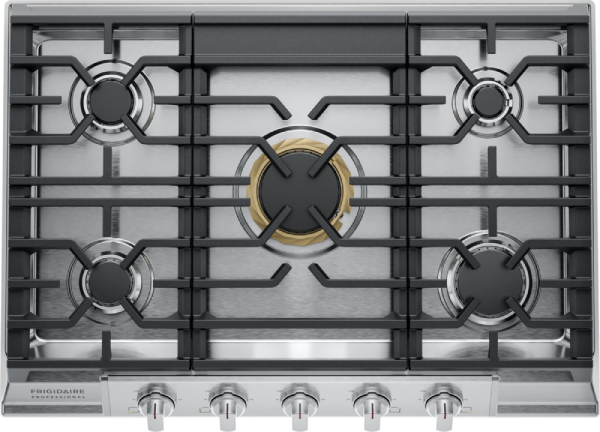

Five Burner Cooktop
From a 5,000 BTU simmer burner for delicate foods to a powerful 18,000 BTU Even Temp burner, this five-burner cooktop is designed to handle all of your cooking needs.

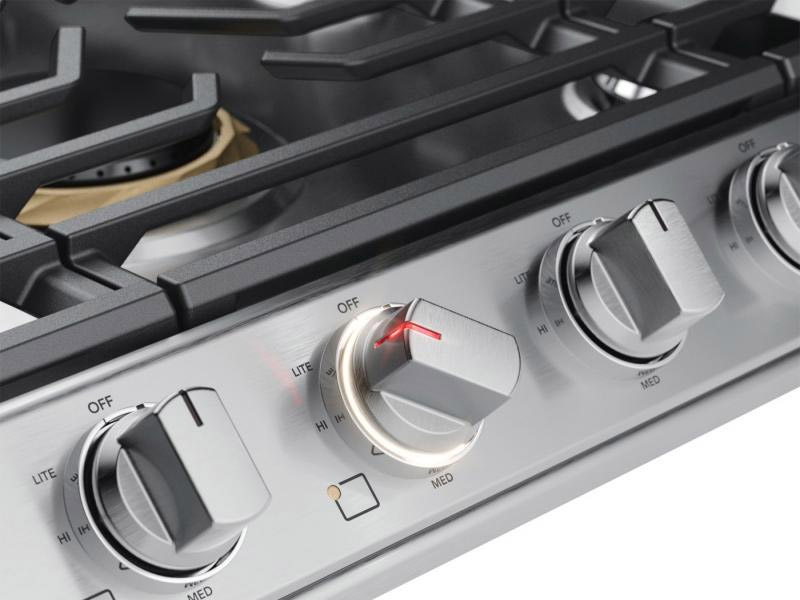

Backlit LED Knobs
Backlit LED knobs light up so you know when your burner is on.
Features
Dishwasher Safe Grates
Cleaning your cooktop is easier with our dishwasher safe grates and burner caps.
Cast Iron Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge cast iron grates.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire Professional gas cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100 1
Front Control Design
Adjust the cooking temperature without having to reach over hot items on the cooktop.
Approved over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire Wall Ovens.
| COOKTOP | |
|---|---|
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Sealed Burners | Yes |
| Cooktop Performance | |
| Right Front Element Burner | 12000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Left Front Element Burner | 9500 BTU |
| Left Rear Element Burner | 9500 BTU |
| Center Front Element Burner | 18000 BTU |
| Exterior | |
| Backlit Knobs | Yes |
| Dimensions and Volume | |
| Height | 2 7/16" |
| Width | 30" |
| Depth | 21" |
| Cutout Height | 7 1/2" |
| Minimum Cutout Width | 27 1/4" |
| Minimum Cutout Depth | 19" |
| Maximum Cutout Width | 29 5/16" |
| Maximum Cutout Depth | 20" |
| ELECTRICAL SPECIFICATIONS | |
| Minimum Circuit Required | 5 Amps |
| Voltage Rating | 120 V |
| Installation | |
| Gas Supply Connection Location | Top Right |
| Installed Over a Wall Oven | Yes |
| LP Conversion Kit Included | Yes |
| Power Cord Included | Yes |
| Power Supply Connection Location | Top Right |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 63 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
