Stunning audio and video performance
High-performance 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC
High-performance immersive surround sound
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations
Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast, Roon Ready)
Powerful amplification
Seven channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Ready for Dirac Live® room correction
Comes Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software. Purchase a license to activate Dirac Live at www.dirac.com/online-store/
Bring both music and movies to life with true high fidelity.

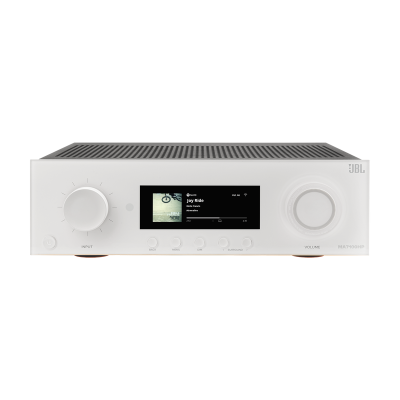

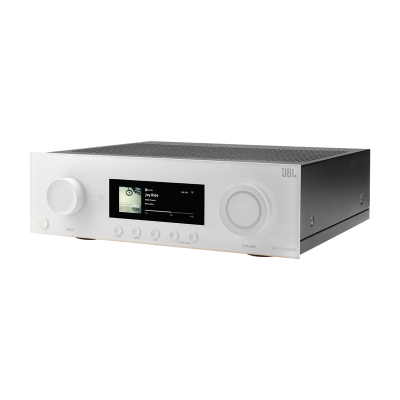

The JBL MA7100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. Designed with a passion for music and movies, the MA7100HP brings both to life with true high fidelity. The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA7100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allows integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can also be made available in a secondary location. In addition to physical controls, the MA7100HP allows for IP control for third party control system integration.
| General Specifications | |
|---|---|
| HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes |
| 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 3 |
| HDMI 2.1 enhanced gaming features | Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) |
| HDR 10+, Dolby Vision | Yes , Yes |
| File format | MP3 / MPEG-4 AAC |
| Pure Analog | Yes |
| EZ Set EQ | Yes |
| Front channel bi-amp | Yes |
| Digital signal processing | up to 24-bit/192kHz |
| Mains voltage | 110 – 240V, 50–60Hz |
| Max. power consumption | 700W |
| Standby power consumption | <0.5W |
| Audio Specifications | |
| Channels | 7.2 |
| FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) | 125W |
| Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 125 W RMS |
| Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 175 W RMS |
| Dimensions | |
| Dimensions incl. feet and speaker terminals (H x W x D) | 5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm) |
| Weight | 16.4lb (7.4kg) |
| Control and Connection Specifications | |
| HDMI Input/Output | 6/ 2 |
| Wi-Fi | Yes (2.4/5GHz) |
| Bluetooth receiver | Yes (v5.3, Low Energy, APTX HD, APTX Adaptive) |
| Bluetooth transmit | Yes |
| Digital Audio Input | 1 Coax, 1 Optical, 1 USB |
| Stereo analog input | 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground |
| Pre-Out (single ended RCA) | Stereo Zone 2, Subwoofer 1, Subwoofer 2 |
| Ethernet | RJ45 Gigabit, WiFi Onboard |
| What's in the box? | |
| What's in the box? | 1x IR Remote 2x AAA batteries 1x Bluetooth antenna 2x Wi-Fi antenna 1x Power Cord 1x Quick-Start Guide 1x Safety Sheet |
