Designed to withstand the elements, the R2-750X5 amplifier is an Element Ready™ 750 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono with a subwoofer channel that can be run at 4Ω or 2Ω. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.
Thanks! You're on the list!
Overview
The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. It’s designed for those who want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.

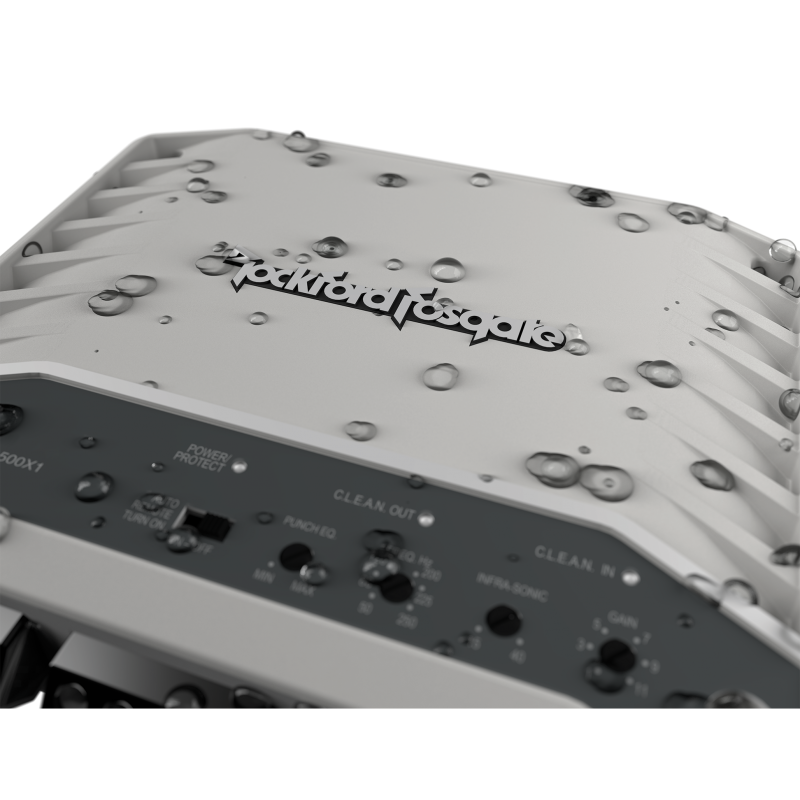

- Element Ready™ design protects against outdoor exposure
- Conformal coated circuit board protects against dust and water
- UV stable powder coated cast aluminum heatsink
- Zinc Nickel-plated Marine grade brass connection terminals
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Optimized using AudioGraph PowerCube measurement tool
- Continuously Variable On Board Punch EQ
- Includes RLC Remote Level Control
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Top Mounted Control Panel
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- 2/4/5 Channel Input Selection Switch
- Short Circuit & Over Current Protection
- Variable Infrasonic Filter
- Integrated Power and Speaker Terminals
- Balanced Differential Inputs eliminates noise picked up by signal cables
- Integration with OEM and Aftermarket Radios
- "Auto-Sense" turn-on with remote out (high level in)
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Low Impedance Stability
- Proprietary testing using RATS (Rockford Automated Testing System)
- CEA-2006 Compliant & CE Compliant
- Rollback Protection
- 2-Year Warranty
Technologies
These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.
Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
A full-range version of the Class-D topology which is a high efficiency amplifier design that reduces current consumption from the charging system.
Power supply circuit design that allows the amplifier to increase output power as voltage increases.
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
Differential inputs eliminate noise picked up by signal cables.
MEHSA4 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
During demanding musical conditions, the amplifier can dynamically reduce demand to prevent stress on the output devices.
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
| Specifications | |
|---|---|
| Number of Channels | 5 |
| Total Power (Sum of Rated Power) | 750 Watts |
| Rated Power (RMS Continuous Power) | 50 Watts x 4 + 200 Watts x 1 @ 4Ω 100 Watts x 4 + 350 Watts x 1 @ 2Ω 200 Watts x 2 + N/A @ 4Ω Bridged/Mono |
| Dynamic Power (PVC/PowerCube®) | 70 Watts x 4 + 241 Watts x 1 @ 4Ω 114 Watts x 4 + 426 Watts x 1 @ 2Ω 234 Watts x 2 + N/A @ 4Ω Bridged/Mono |
| Bridgeable | Yes |
| Frequency Response | 20 Hz - 20 kHz |
| Input Sensitivity | Low-Level: 150 mV - 4 V High-Level: 450 mV - 12 V |
| Circuit Topology Class | Class D |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0% 2Ω: <1.0% |
| Signal Input | Front Low-Level: 2 RCA Front High-Level: 4-Pin Molex Rear Low-Level: 2 RCA Rear High-Level: 4-Pin Molex Sub Low-Level: 2 RCA Sub High-Level: 4-Pin Molex |
| Signal Output | N/A |
| Tone Controls | 0 to +18 dB @ 45 Hz |
| Crossover Controls | Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Sub Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth |
| Remote Controls | Yes |
| Visual Indicators | Power/Protect C.L.E.A.N. In C.L.E.A.N. Out (front) C.L.E.A.N. Out (rear) C.L.E.A.N. Out (sub) |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Compression Terminal Block |
| Speaker Wire Gauge | 8 AWG |
| Speaker Output Connector | Compression Terminal Block |
| Cooling | Convection |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 120 A |
| Max. Current Draw (13.8V Sinewave) | 71 A |
| Dimensions (H x W x D) | 1.9" x 6.8" x 11.2" (4.9 cm x 17.3 cm x 28.5 cm) |
| Shipping Weight | 6.13 Lbs. (2.78 Kg) |
