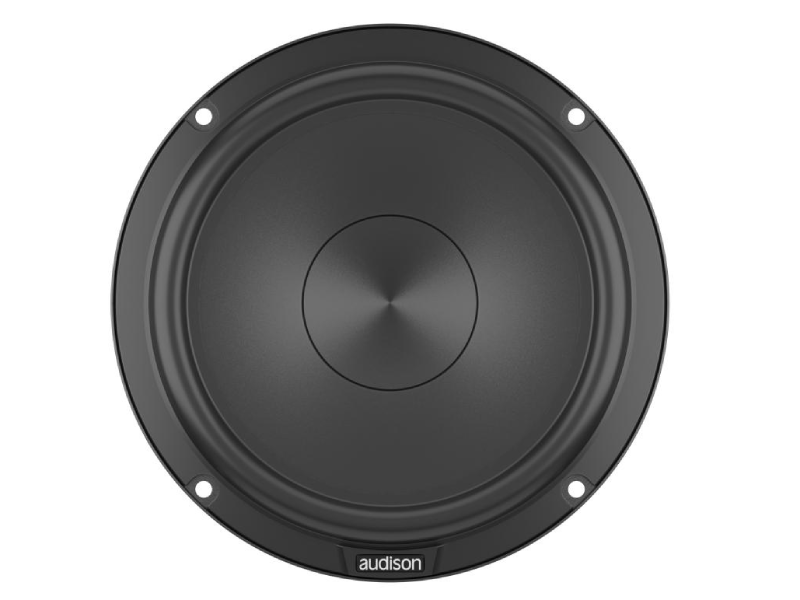

Audison 4 ohm 330 W Peak Power Woofer - AP6.5P
AP6.5P
Literature
AP 6.5P woofer component has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency featuring a very wide excursion to cope with the most important dynamic peaks without any compression. Its impressive magnetic assembly provides the energy needed for perfect control even during limit excursions. The CCAW (Copper Clad Aluminium Wire) voice coil (32 x 14 mm, 1.25 x 0.55 in) optimally manages the greater applied power. The basket was completely redesigned with the aid of simulations to lower the resistance of air flows, while maintaining compact sizes to facilitate the installation.
Features
- Increased excursion of the mobile group for a superior dynamic response
- Optimized electro-acoustic parameters to maximize performance for OEM placements
- Magnetic group sized for perfect control even at maximum cone excursion
- CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power
- Compact size basket for easy OEM installations
| TECHNICAL SPECS | |
|---|---|
| Size | 165 mm |
| Power Handling - Peak | 330 W |
| Power Handling - Continuous | 110 W |
| Impedance | 4 Ohm |
| Frequency Response | 50 - 5k Hz |
| Voice Coil Ø | 32 mm |
| Voice Coil Material | CCAW |
| Woofer Qes | 0,6 |
| Cone Material | WATER-REPELLENT TREATED PAPER CONE |
| Xmax | 5.6 mm |
| ELECTRIC-ACOUSTIC SPECS | |
| D | 132 mm |
| Re | 3.1 Ohm |
| Fs | 60 Hz |
| Vas | 11.4 l |
| Mms | 14.6 g |
| Cms | 0.47 mm/N |
| BL | 5.35 T•m |
| Qms | 7.6 |
| Qts | 0.55 |
| Le Standard | 0.29 mH |
| Spl | 92.5 dB |
| General | |
| Weight | 1.45 kg |
| Dimensions | |
| Dimension A | 165 mm |
| Dimension B | 141 mm |
| Dimension C | 75 mm |
| Dimension D | 66.5 mm |
