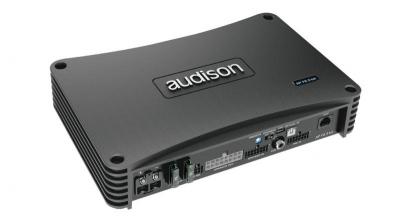

Audison DSP Amplifier 1040W 9-Channel D-class Fully Bridgeable - AP F8.9 bit-24V
AP F8.9 bit-24V
DSP Amplifier | 1040 W | 9 CH DSP + 8 x 130 W @ 2 ohm | D-class Fully Bridgeable
The new AP F8.9 bit-24V version is the ideal for any vehicles with 24 V car electrical system, where high power is required along with the flexibility of the nine-channel DSP. The word Forza, meaning Power in Italian, well describes the 8 x 85 W RMS and 4 x 260 in bridge mode (RMS @ 4 ohm), with an optimal power to size ratio. The integrated processor is equipped with a dedicated software and 7 pre-configured presets for a Plug & Sound experience. Thanks to the built-in Audison USS technology (Universal Speakers Simulator), AP F8.9 bit can also be correctly connected to head-units with speaker load detection function that monitors the presence of a low-impedance load to enable the audio outputs.
Features
- 8 x 85 W RMS and 4 x 260 in bridge mode (RMS @ 4 ohms)
- Built-in 9 channels processor with PC software
- 7 pre-configured presets for a Plug & Sound experience
- built-in Audison USS technology (Universal Speakers Simulator)
Technologies
Pure digital signal transfer with a resolution up to 24 bit / 48 kHz.
Auto tuning by Audison bit Tune.
De-equalization function to “flatten” any equalization applied by default by OEM sources.
USS technology allows Prima amplifiers to work with head-units featuring the “speaker load detection” circuit
When AP bit amplifiers are installed into a compatible vehicle using the iDatalink Maestro AR (sold separately), the user can enjoy a perfect integration with factory installed navigation, advanced safety systems, voice-controlled hands-free and infotainment. (Only for North America)
| AMPLIFIER TECH DATA | |
|---|---|
| Channels | 8 |
| Class | D-Class |
| Power supply voltage / fuse | 22 ÷ 34 VDC / 2 x 15 A |
| Operating power supply voltage | 14 ÷ 36 VDC |
| Idling current | 0.96 A |
| Switched off without DRC MP | 1.6 mA |
| Switched off with DRC MP | 5 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 27.5 A |
| Remote IN | 6 ÷ 34 VDC |
| Remote OUT | 14 ÷ 34 VDC |
| ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers | 2 ÷ 7 VDC |
| AST - Automatic Signal Turn on/off (Selectable) | Speaker-In |
| AMPLIFIER STAGE | |
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | 0,06% |
| Bandwidth @ -1.5 dB | 10Hz ÷ 22kHz |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | > 110 |
| S/N ratio (A weighted @ 1 V Input) Master Input | 100 dBA |
| S/N ratio (A weighted @ 1 V Input) Optical Input | 105 |
| Total Power RMS | 1040 W |
| Minimum load impedance | 8Ch: 2Ω | 4Ch - (Bridge 1/2; 3/4; 5/6; 7/8) : 4Ω |
| Output Continuous Power (RMS) @14.4 VDC, 1% THD | 8Ch @ 4Ω 85 W x 8 8Ch @ 2Ω 130 W x 8 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω 260 W x 4 2Ch @ 4Ω 100 W x 2 2Ch @ 2Ω 150 W x 2 1Ch (Bridge) @ 4Ω 300 W x 1 |
| Output Impulsive Power @14.4 VDC, 1% THD | 8Ch @ 4Ω 100 W x 8 8Ch @ 2Ω 150 W x 8 4Ch (Bridge) @ 4Ω 300 W x 4 |
| Adjustable Crossover | Yes |
| Inputs / Outputs | |
| Pre-In Inputs | Ch1 ÷ Ch6 customizable |
| Pre Outputs | 1 |
| Hi Level Inputs | 6 |
| Low Level Inputs | 6 |
| Speaker-In Inputs | Ch1 ÷ Ch6 customizable |
| Digital IN | 1 x Optical S/PDIF; Max 192 kHz / 24 bit |
| Sub Out (RCA Pre Out) | 4 VRMS |
| DIGITAL SIGNAL PROCESSOR | |
| Filter type | Full / Hi pass / Low Pass / Band Pass |
| Filter mode and slope | Linkwitz @ 12/24 dB Butterworth @ 6/12/18/24 dB |
| Crossover frequency | 68 steps @ 20 ÷ 20k Hz |
| Phase control | 0° / 180° |
| Bass Boost | N.1 Adjustable Parametric Pole |
| Analog Input Equalizer (20 ÷ 20k Hz) | Automatic De-Equalization |
| Output Equalizer | N.9 Parametrics Equalizers: ±12 dB;10 pole; 20 ÷ 20k Hz |
| Time Alignment Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inches |
| Time Alignment Delay | 0 ÷ 15 ms |
| Time Alignment Step | 0.08 ms; 2.8 cm / 1.1 inch |
| Time Alignment Fine SET | 0.02 ms; 0.7 cm / 0.27 inch |
| Preset (Drive Preset) | Rotary switch for 7 installation Presets |
| CONTROL CONNECTIONS | |
| From / To Personal Computer | 1 x Micro USB |
| Optical / AUX select | Optical select wire control +12 V enable |
| Master enable | Master enable wire control +12 V enable |
| GENERAL REQUIREMENTS | |
| PC connections | Micro USB 1.1 / 2.0 / 3.0 Compatible |
| Software/PC requirements | Microsoft Windows (32/64 bit): Vista, Windows 7, Windows 8, Windows 10, Windows 11 |
| Video Resolution with screen resize | min. 1024 x 600 |
| Ambient operating temperature range | 0 °C to 55 °C (32 °F to 131 °F) |
| Size | 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1 |
| Weight | 1.98 kg |
| Dimensions | |
| Dimension A | 238 mm |
| Dimension B | 218 mm |
| Dimension C | 155 mm |
| Dimension D | 135 mm |
| Dimension E | 49.5 mm |
