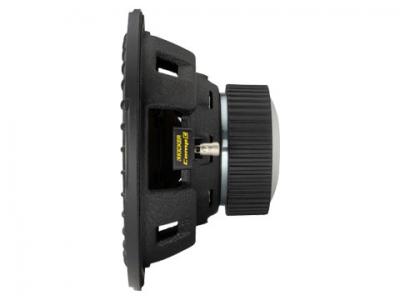

Kicker 10 Inch 4 Ohm SVC CompC Series Subwoofer - 50CWCS104
50CWCS104
Literature
The perfect combination of performance and value, the KICKER® CompC™ Subwoofer delivers the bump you’ve been craving!
10" CompC 4 Ohm SVC
- Single Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
- Injection-Molded Polypropylene Cone
- Forced-Air Cooling™ for Outstanding Durability
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead™ Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
| Specifications | |
|---|---|
| Thiele/Small Parameters | 50CWCS104 T/S Parameters |
| Product Dimension Sheet | 50CWCS104 Dimensions |
| Size [in, cm] | 10, 25 |
| Recommended Amplifier Power [watts RMS] | 125-250 |
| Peak Power Handling [watts, per ANSI/CTA-2031-A] | 500 |
| Sensitivity [dB 1w/1m] | 85.9 |
| Rated Impedance [OHMS] | 4 SVC |
| Fs [Hz] | 33.9 |
| Frequency Response [Hz] | 30-500 |
| Outer Frame Dimension [in, cm] | 10-11/16, 27.2 |
| Mounting Depth [in, cm] | 5-3/16, 13.2 |
| Mounting Cutout [in, cm] | 9-3/16, 23.3 |
| Max Rec Sealed Box Vol [cu. ft, liters | 2.4, 68 |
| Min Rec Sealed Box Vol [cu. ft, liters | 1, 28.3 |
| Max Rec Vented Box Vol [cu. ft, liters) | 1.75, 49.6 |
| Min Rec Vented Box Vol [cu. ft, liters] | 1.25, 35.4 |
| Warranty | When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. |
